Circular confidence arc

Source: R/geom-confidence-arc.R
geom_confidence_arc.Rd

Draws angular intervals as arcs at a fixed radius. Intervals crossing zero are split into two path segments.

Usage

geom_confidence_arc(
  mapping = NULL,
  data = NULL,
  ...,
  radius = 1,
  n = 200,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

geom_circular_interval(
  mapping = NULL,
  data = NULL,
  ...,
  radius = 1,
  n = 200,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

Arguments

mapping, data, show.legend, inherit.aes

Standard ggplot2 layer arguments.

...

Additional arguments passed to the path geometry.

radius

Default radius used when no radius or y aesthetic is supplied.

n

Number of points used to discretize each interval.

na.rm

Should missing interval endpoints be silently removed?

Value

A ggplot2 layer.

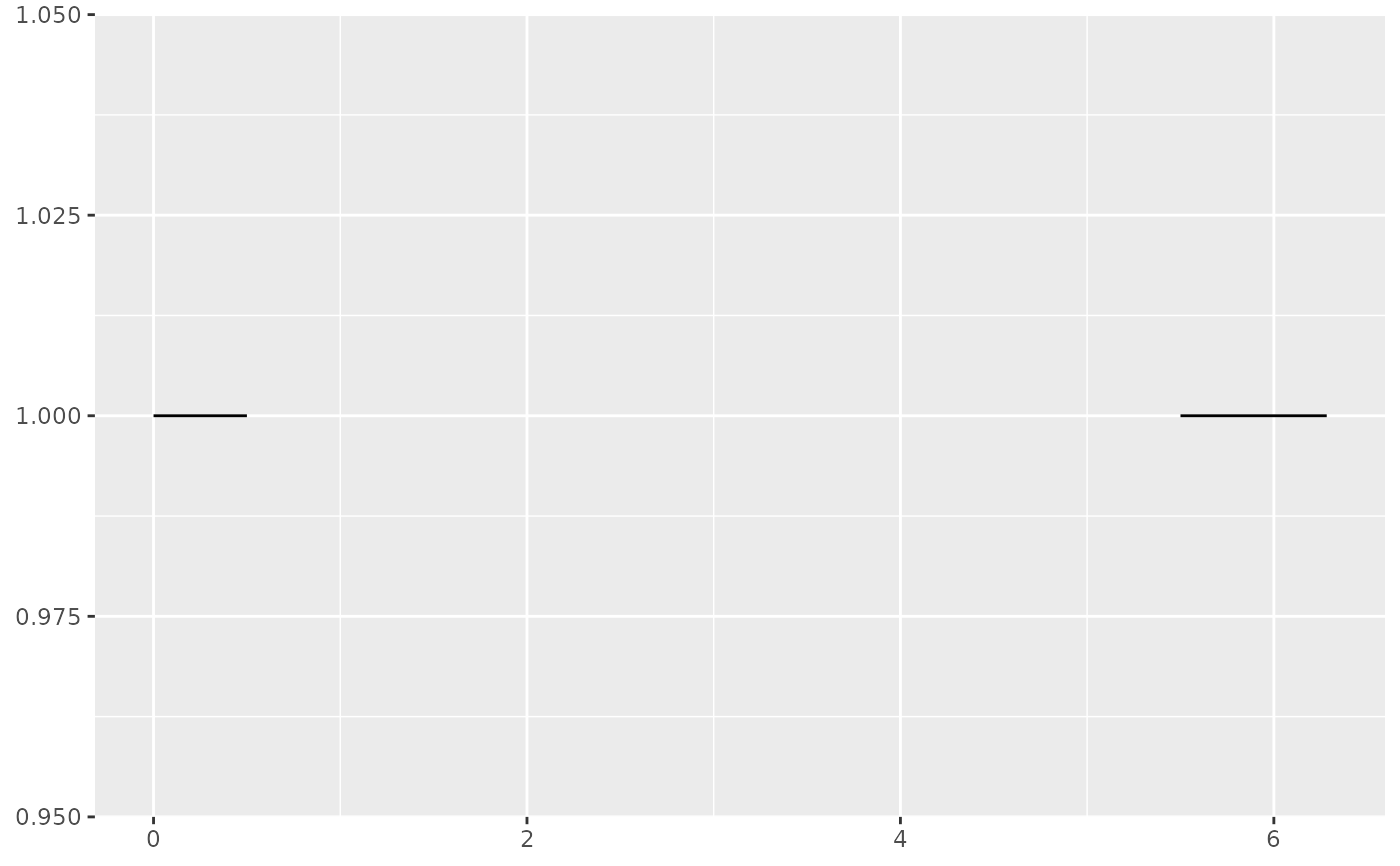

Examples

tibble::tibble(lower = 5.5, upper = 0.5) |>
  ggplot2::ggplot(ggplot2::aes(xmin = lower, xmax = upper)) +
  geom_confidence_arc()
