Add a conditional ridge stat layer on the torus

Adds a conditional modal ridge for circular-circular data. Use with aes(x = theta, y = phi).

Usage

stat_toroidal_ridge(
  mapping = NULL,
  data = NULL,
  geom = "path",
  position = "identity",
  n_theta = 181,
  n_phi = 181,
  kappa_theta = 20,
  kappa_phi = 20,
  tie_tolerance = 0.01,
  signed = TRUE,
  ...,
  show.legend = NA,
  inherit.aes = TRUE
)

Arguments

mapping, data, geom, position, show.legend, inherit.aes

Standard ggplot2 layer arguments.

n_theta

Number of theta grid points.

n_phi

Number of phi grid points.

kappa_theta

Kernel concentration for theta.

kappa_phi

Kernel concentration for phi.

tie_tolerance

Relative tolerance used to flag near-tied distinct local modes without changing the selected ridge.

signed

If TRUE, plot angles in the signed interval.

...

Additional arguments passed to the geom.

Value

A ggplot2 layer.

See also

Other toroidal dependence layers: geom_toroidal_flow(), stat_toroidal_topography()

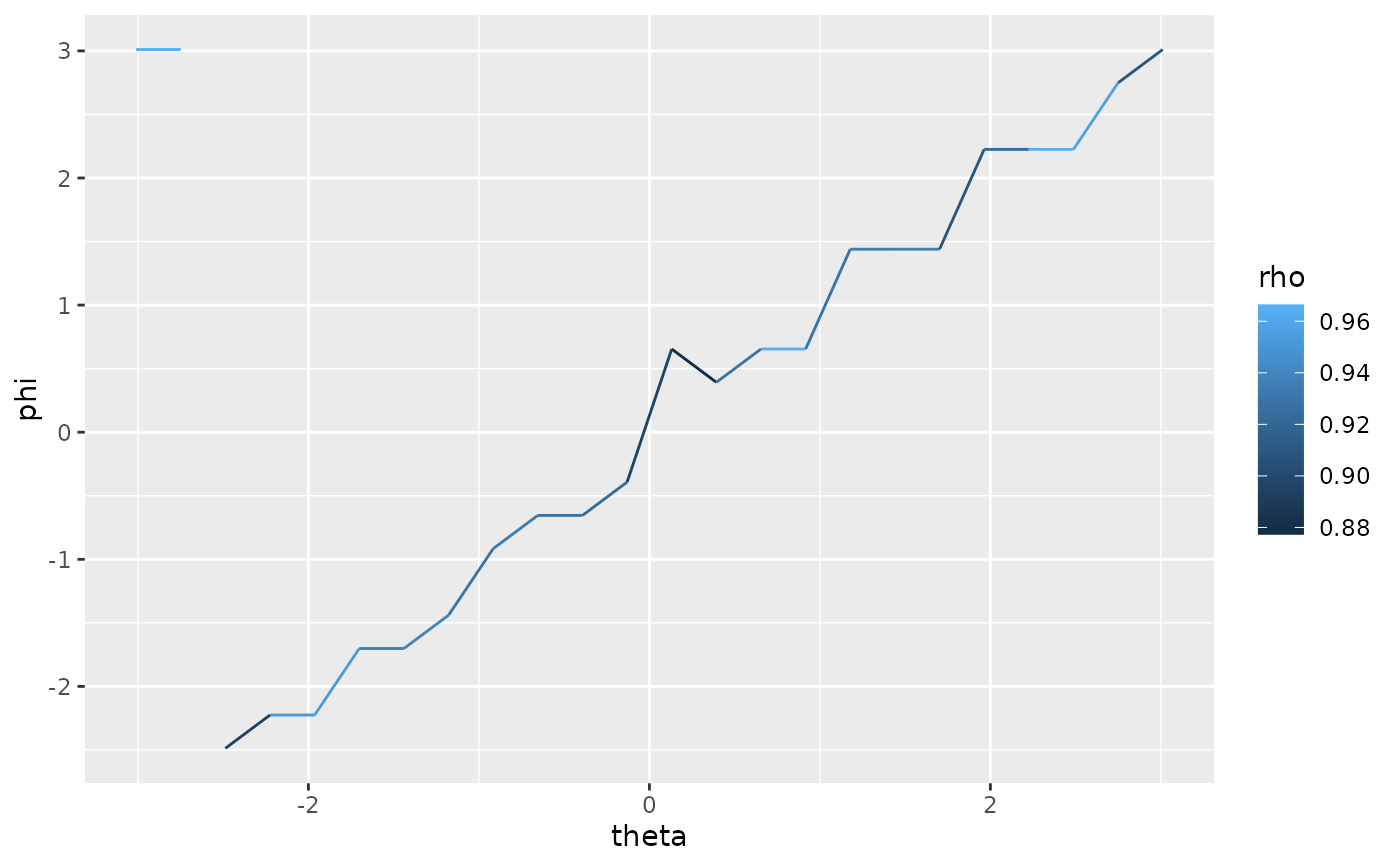

Examples

dat <- simulate_toroidal(n = 80, scenario = "diagonal", seed = 1)
ggplot2::ggplot(dat, ggplot2::aes(x = theta, y = phi)) +
  stat_toroidal_ridge(n_theta = 24, n_phi = 24)
