This vignette gives a compact tour of the diagnostic families
available in evalueHMM. The examples use a single simulated
validation trajectory so that the diagnostics can be compared on the
same time axis.
The simulated trajectory below has step-angle dependence induced through a Gaussian copula. The null model is still a standard two-state movement HMM. This creates a small but visible mismatch for the feature-level copula diagnostic.
set.seed(20260522)
null_parameters <- create_hmm_movement_parameters()
validation_data <- simulate_hmm_movement_copula(
n_times = 150,
parameters = null_parameters,
rho_by_state = c(0.55, 0.10)
)

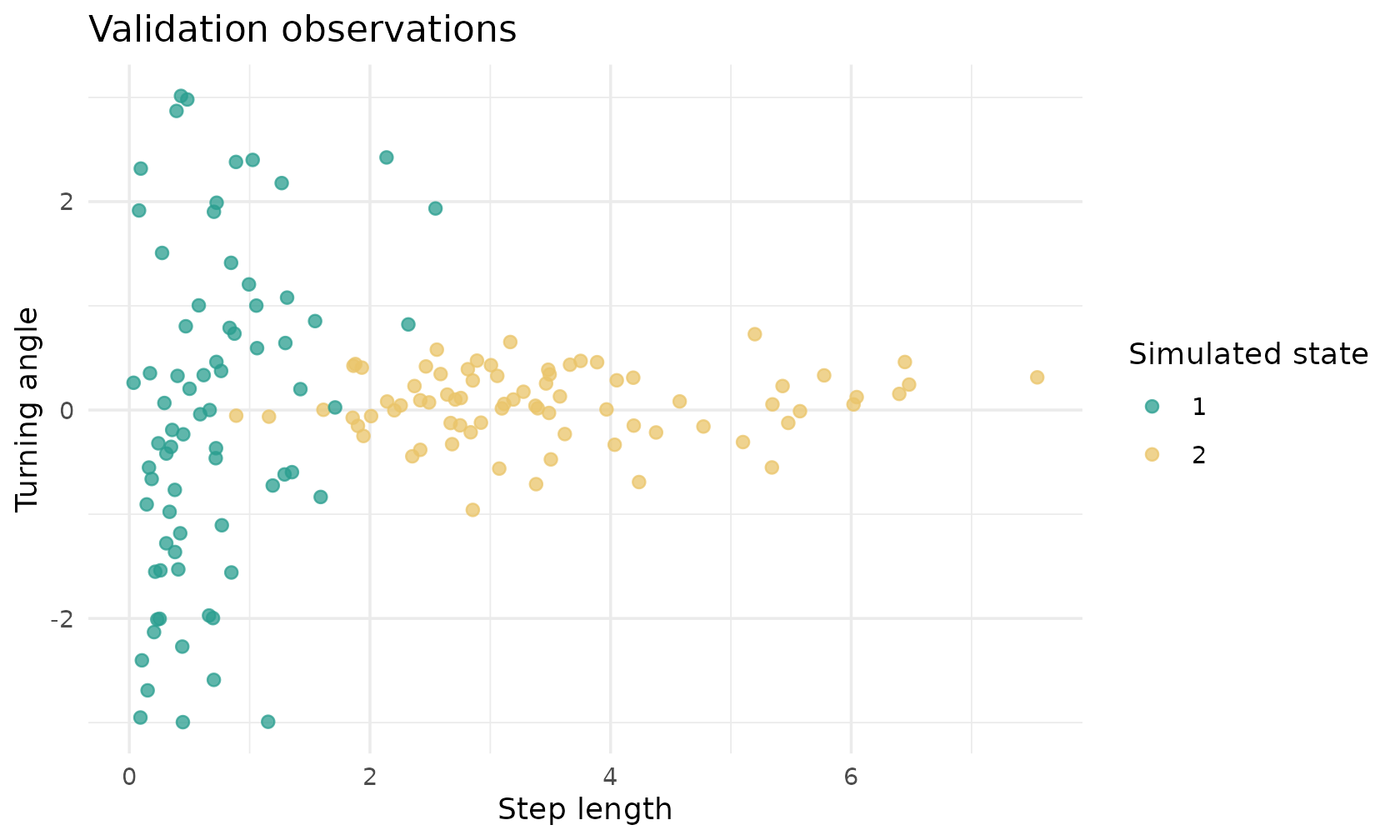

validation_data$state <- factor(validation_data$state)
ggplot(validation_data, aes(x = step_length, y = turning_angle, colour = state)) +
geom_point(alpha = 0.75, size = 1.8) +
scale_colour_manual(values = c("#2A9D8F", "#E9C46A", "#264653")) +
labs(
x = "Step length",
y = "Turning angle",
colour = "Simulated state",
title = "Validation observations"
) +
theme_minimal()
Full-density diagnostics
Full-density diagnostics replace the null predictive density by another full movement HMM density. They are useful when the scientific concern can be expressed as an alternative movement model.
A state-number diagnostic compares the null HMM with a diagnostic HMM containing one additional state.
extra_state_parameters <- create_hmm_movement_parameters(
initial_probs = c(0.55, 0.35, 0.10),
transition_matrix = matrix(
c(0.90, 0.08, 0.02,
0.10, 0.85, 0.05,
0.12, 0.10, 0.78),
nrow = 3,
byrow = TRUE
),
step_shape = c(2, 7, 4),
step_rate = c(3, 2, 1.5),
angle_mean = c(0, 0, 0.4),
angle_sd = c(1.6, 0.35, 0.8)
)
state_diagnostic <- diagnostic_extra_state(
data = validation_data,
null_parameters = null_parameters,
extra_state_parameters = extra_state_parameters
)
summarise_predictive_diagnostic(state_diagnostic)
#> diagnostic_name alpha threshold signal crossing_time max_log_e final_log_e
#> 1 extra_state 0.05 2.995732 FALSE NA 2.047781 -0.9408181
#> mean_log_increment n_observations
#> 1 -0.006272121 150An angular diagnostic keeps the number of states fixed but modifies the angular component.
angle_parameters <- perturb_hmm_movement_parameters(
parameters = null_parameters,
angle_sd_multiplier = c(1.2, 1.4)
)
angle_diagnostic <- diagnostic_angle(
data = validation_data,
null_parameters = null_parameters,
angle_parameters = angle_parameters
)
summarise_predictive_diagnostic(angle_diagnostic)
#> diagnostic_name alpha threshold signal crossing_time max_log_e
#> 1 angle_misspecification 0.05 2.995732 FALSE NA 1.152723
#> final_log_e mean_log_increment n_observations
#> 1 -15.81742 -0.1054495 150Feature-level diagnostics
Feature-level diagnostics transform observations through the null model and then test a lower-dimensional feature. The step-angle diagnostic uses sequential Rosenblatt residuals and a Gaussian copula diagnostic density.
copula_diagnostic <- diagnostic_step_angle_dependence(
data = validation_data,
null_parameters = null_parameters,
rho = 0.45
)
summarise_predictive_diagnostic(copula_diagnostic)
#> diagnostic_name alpha threshold signal crossing_time max_log_e
#> 1 step_angle_dependence 0.05 2.995732 TRUE 45 4.700148
#> final_log_e mean_log_increment n_observations
#> 1 -8.573855 -0.05715903 150
head(copula_diagnostic$features)
#> time individual_id u_step u_angle_given_step
#> 1 1 1 0.1186335 0.1665613
#> 2 2 1 0.3332687 0.2291244
#> 3 3 1 0.5886906 0.8968392
#> 4 4 1 0.7590032 0.7366286
#> 5 5 1 0.9289046 0.2272643

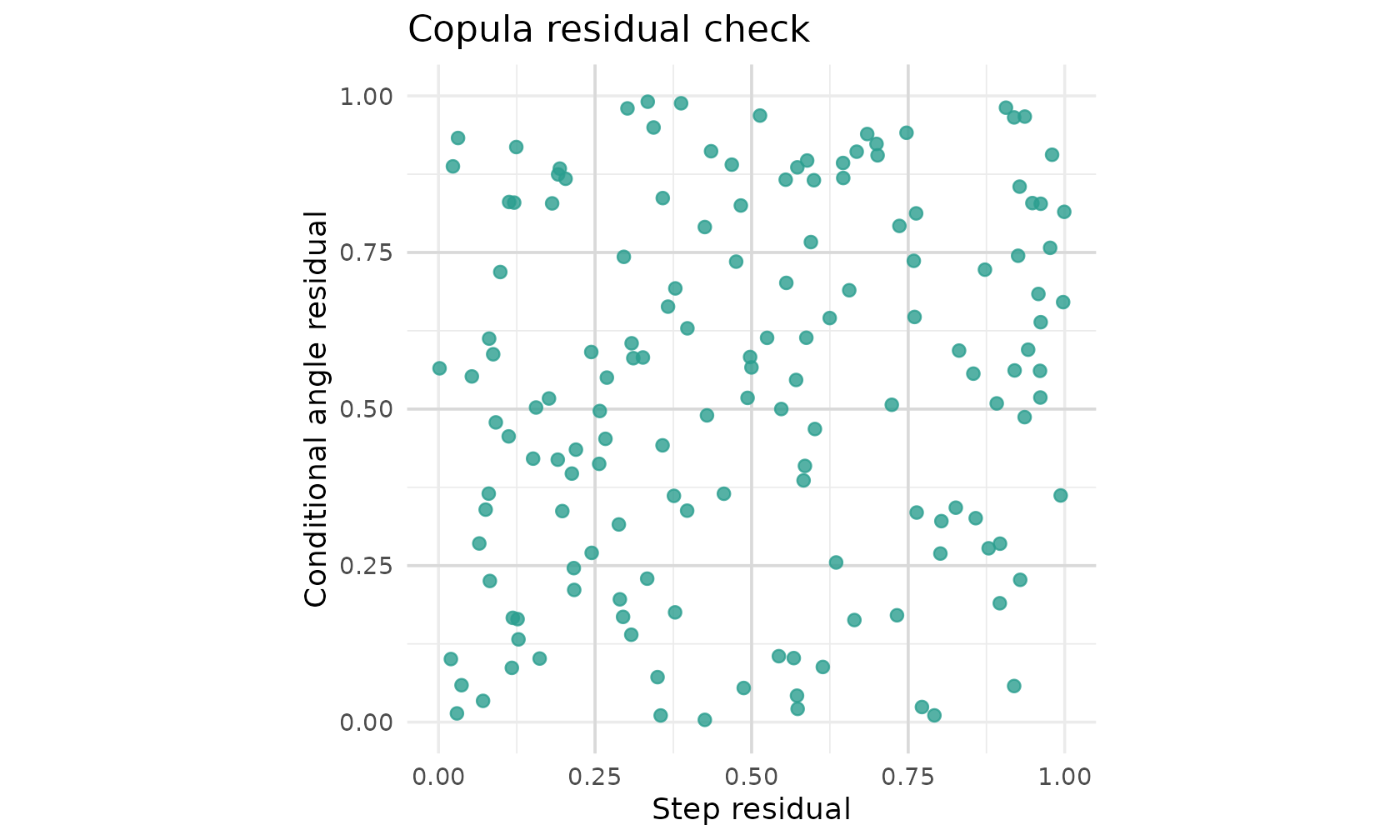

#> 6 6 1 0.5544554 0.8662198The residual plot is often the most informative visual check. Under a good null model, the transformed residuals should look roughly independent and uniform on the unit square. Dependence or structure suggests a feature-level failure of the null model.
ggplot(copula_diagnostic$features, aes(x = u_step, y = u_angle_given_step)) +
geom_hline(yintercept = c(0.25, 0.50, 0.75), colour = "grey85") +
geom_vline(xintercept = c(0.25, 0.50, 0.75), colour = "grey85") +
geom_point(alpha = 0.80, size = 1.8, colour = "#2A9D8F") +
coord_equal(xlim = c(0, 1), ylim = c(0, 1)) +
labs(
x = "Step residual",
y = "Conditional angle residual",
title = "Copula residual check"
) +
theme_minimal()
Predictable combinations
Diagnostics can be combined by predictable mixture weights. A mixture is useful when several failure modes are plausible and the analyst wants one valid diagnostic process rather than a post hoc choice among many curves.
mixture <- diagnostic_mixture(
diagnostics = list(
extra_state = state_diagnostic,
angle = angle_diagnostic,
copula = copula_diagnostic
),
weights = c(1 / 3, 1 / 3, 1 / 3)
)
summarise_predictive_diagnostic(mixture)
#> diagnostic_name alpha threshold signal crossing_time max_log_e final_log_e
#> 1 diagnostic_mixture 0.05 2.995732 TRUE 53 3.173977 -0.2198431
#> mean_log_increment n_observations

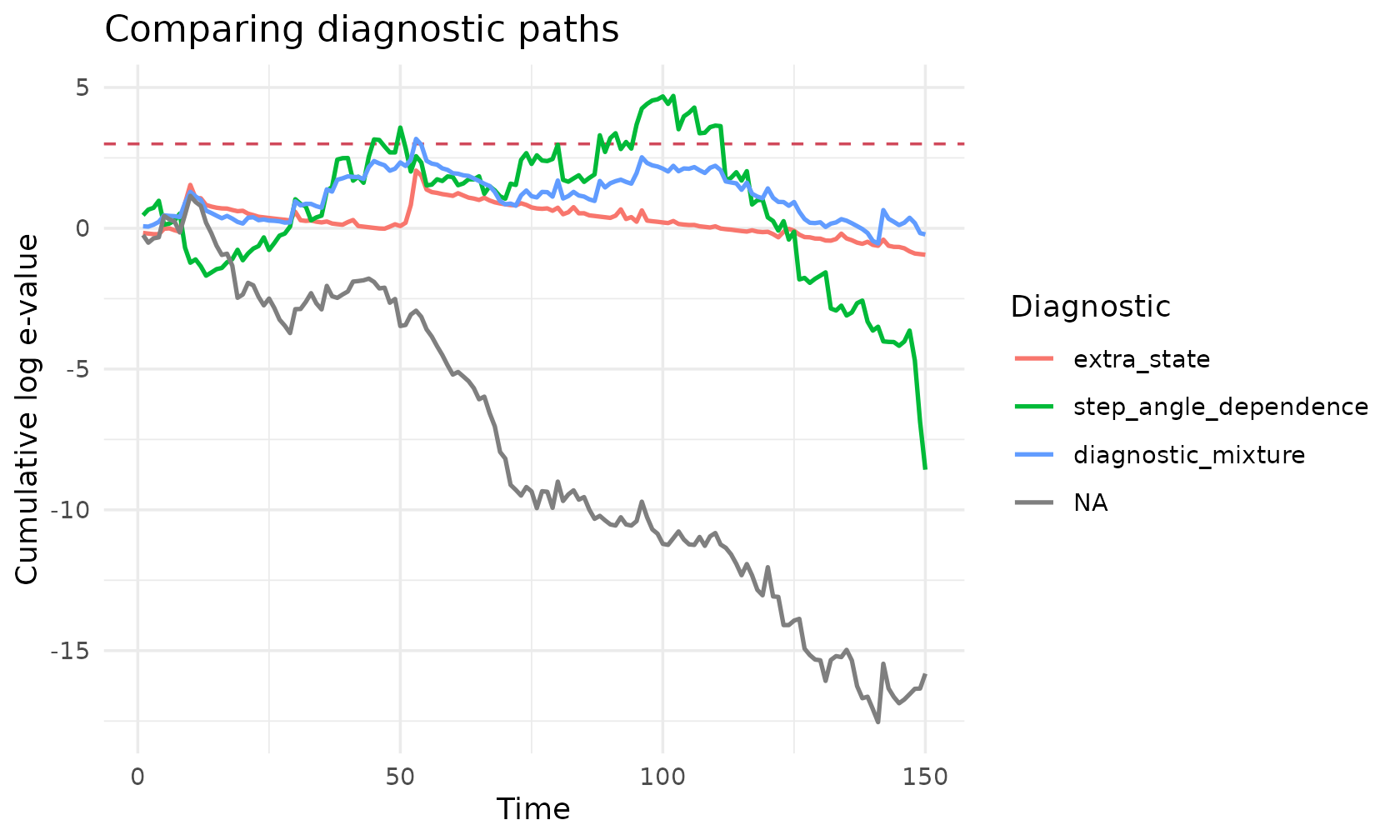

#> 1 -0.001465621 150The following figure compares the cumulative log e-processes. The
dashed line is the usual log(1 / alpha) threshold.
diagnostic_paths <- rbind(
state_diagnostic$path,
angle_diagnostic$path,
copula_diagnostic$path,
mixture$path
)
diagnostic_paths$diagnostic_name <- factor(
diagnostic_paths$diagnostic_name,
levels = c(
"extra_state",
"angle",
"step_angle_dependence",
"diagnostic_mixture"
)
)
ggplot(diagnostic_paths, aes(
x = time,
y = log_e_cumulative,
colour = diagnostic_name
)) +
geom_hline(
yintercept = mixture$threshold,
linetype = "dashed",
colour = "#D1495B"
) +
geom_line(linewidth = 0.75) +
labs(
x = "Time",
y = "Cumulative log e-value",
colour = "Diagnostic",
title = "Comparing diagnostic paths"
) +
theme_minimal()
Localization
A diagnostic can be localized using predictable weights. Here the same mixture is allowed to accumulate evidence only over a selected time window.
window_weights <- time_window_weights(
time = mixture$path$time,
start = 45,
end = 105
)
localized <- localize_predictive_diagnostic(
diagnostic = mixture,
weights = window_weights,
localization_name = "time_window"
)
summarise_predictive_diagnostic(localized)
#> diagnostic_name alpha threshold signal crossing_time
#> 1 diagnostic_mixture__time_window 0.05 2.995732 FALSE NA
#> max_log_e final_log_e mean_log_increment n_observations

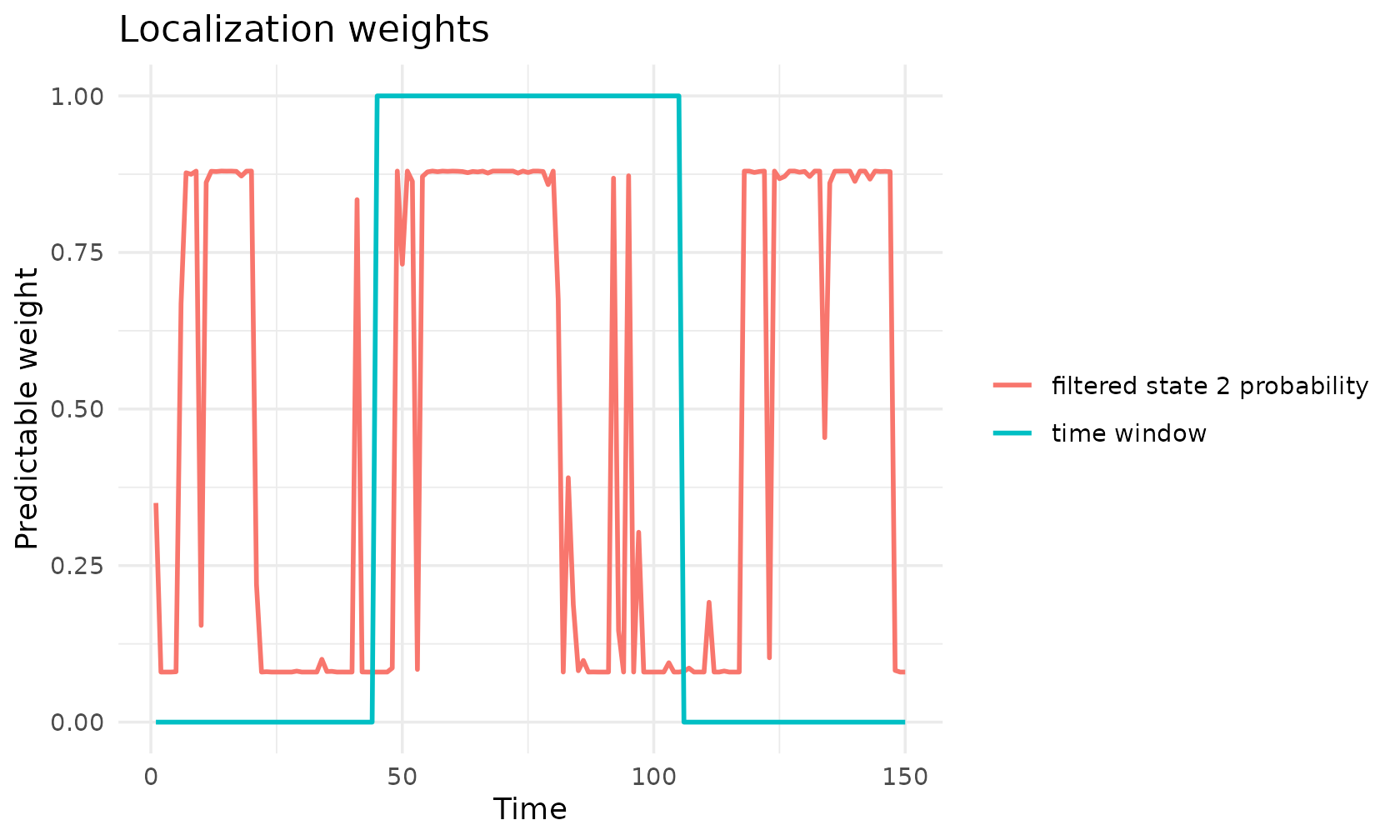

#> 1 1.000124 -0.06076115 -0.0004050743 150State-localized diagnostics can also use filtered predictive state probabilities. These weights are predictable because they are computed from past and current information under the null filtering recursion.
state_weights <- hmm_predictive_state_weights(
data = validation_data,
parameters = null_parameters,
state = 2
)
weights_long <- rbind(
data.frame(
time = mixture$path$time,
weight = window_weights,
type = "time window"
),
data.frame(
time = mixture$path$time,
weight = state_weights,
type = "filtered state 2 probability"
)
)
ggplot(weights_long, aes(x = time, y = weight, colour = type)) +
geom_line(linewidth = 0.8) +
scale_y_continuous(limits = c(0, 1)) +
labs(
x = "Time",
y = "Predictable weight",
colour = NULL,
title = "Localization weights"
) +
theme_minimal()
localized_paths <- rbind(
data.frame(
time = mixture$path$time,
log_e_cumulative = mixture$path$log_e_cumulative,
process = "global mixture"
),
data.frame(
time = localized$path$time,
log_e_cumulative = localized$path$log_e_cumulative,
process = "time-localized mixture"
)
)

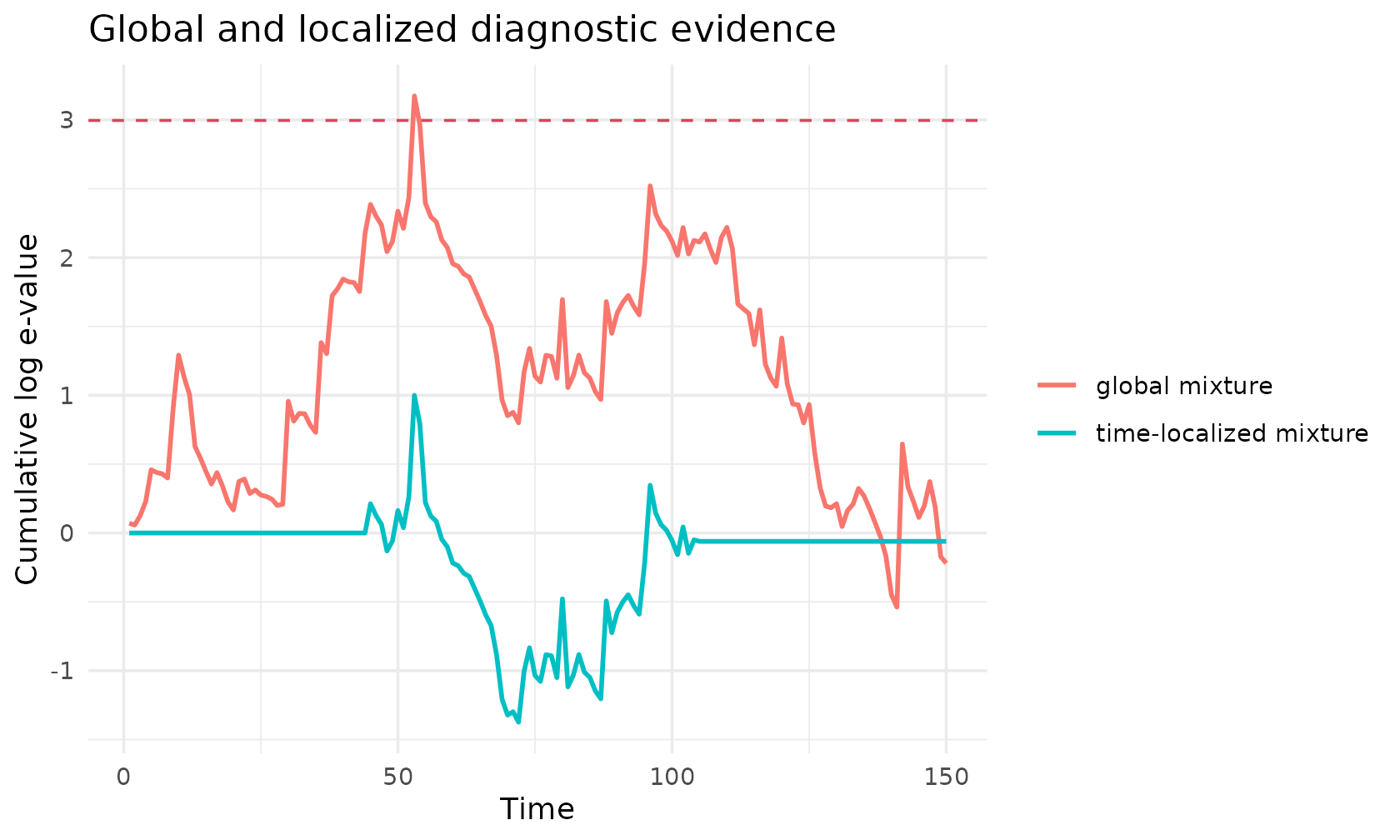

ggplot(localized_paths, aes(
x = time,
y = log_e_cumulative,
colour = process
)) +
geom_hline(
yintercept = mixture$threshold,
linetype = "dashed",
colour = "#D1495B"
) +
geom_line(linewidth = 0.8) +
labs(
x = "Time",
y = "Cumulative log e-value",
colour = NULL,
title = "Global and localized diagnostic evidence"
) +
theme_minimal()
The catalog is meant as a starting point. In an applied analysis, the diagnostic alternative should be motivated by a concrete modeling concern such as missing states, poor angular dynamics, residual step-angle dependence, duration misspecification or localized habitat-specific failure.
