Optional model integration
ggcircular keeps angular model packages optional. When
CircularRegression is installed, model objects can be
tidied, augmented and visualized with diagnostic plots.
if (requireNamespace("CircularRegression", quietly = TRUE)) {
fit <- CircularRegression::consensus(direction ~ speed, data = wind_directions)
tidy_circular(fit)
glance_circular(fit)
}Circular residuals
if (requireNamespace("CircularRegression", quietly = TRUE)) {
fit <- CircularRegression::consensus(direction ~ speed, data = wind_directions)
residuals <- circular_residuals(fit)
head(residuals)
circular_model_diagnostics(fit)
}Residual graphics
if (requireNamespace("CircularRegression", quietly = TRUE)) {
fit <- CircularRegression::consensus(direction ~ speed, data = wind_directions)
autoplot(fit, type = "residuals_rose")
autoplot(fit, type = "residuals_density")
}Mixtures of von Mises distributions
fit_mix <- fit_vonmises_mixture(wind_directions$direction, k = 2)
#> Warning: `fit_vonmises_mixture()` did not converge within `max_iter`
#> iterations.
tidy_circular(fit_mix)
#> # A tibble: 2 × 4
#> component proportion mu kappa
#> <int> <dbl> <dbl> <dbl>
#> 1 1 0.321 0.903 1.49
#> 2 2 0.679 4.06 0.755
glance_circular(fit_mix)
#> # A tibble: 1 × 12
#> n components logLik AIC BIC iterations converged nstart start_id
#> <int> <int> <dbl> <dbl> <dbl> <int> <lgl> <int> <int>
#> 1 500 2 -912. 1833. 1854. 200 FALSE 1 1
#> # ℹ 3 more variables: empty_components <int>, kappa_max <dbl>, axial <lgl>

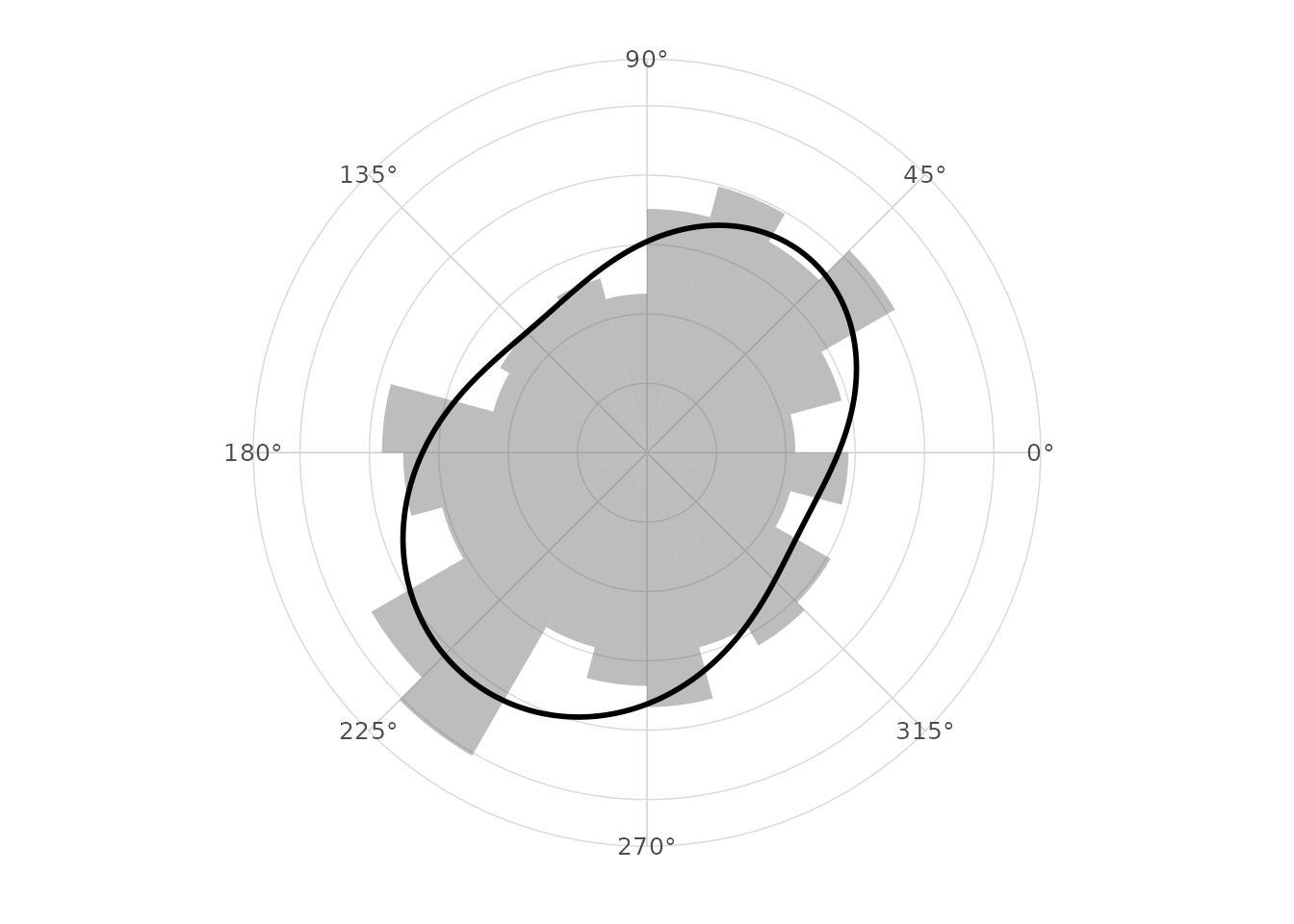

ggplot(wind_directions, aes(x = direction)) +
geom_rose(aes(y = after_stat(density)), bins = 24, alpha = 0.4) +
stat_vonmises_mixture(fit = fit_mix, linewidth = 1) +
scale_x_circular_degrees() +
coord_circular() +
theme_circular()
Tests and intervals
circular_mean_ci(wind_directions$direction, method = "large_sample")
#> # A tibble: 1 × 7
#> mean lower upper level method n Rbar
#> <dbl> <dbl> <dbl> <dbl> <chr> <int> <dbl>
#> 1 4.10 3.72 4.49 0.95 large_sample 500 0.0494
rayleigh_test(wind_directions$direction)
#>
#> Rayleigh test of circular uniformity
#>
#> data: c(3.61399414214871, 0.516403808686312, 3.18127143608671, 2.81398312066174, 3.48203785207672, 0.56424680709192, 0.629856683201911, 5.13158541730147, 0.857734675514404, 5.52884932182807, 6.14565025509431, 3.39186111855533, 5.68072279739308, 4.61418407964105, 4.74543931715619, 0.561767051885953, 3.93703683208835, 4.27621516412755, 0.88537547466561, 3.38244973375004, 4.54086340127989, 0.0252624877997549, 4.27062854516948, 3.97637694706441, 5.85083657554049, 5.87445936548537, 1.58836065931894, 3.77285531449948, 2.84978104987197, 3.65012027729075, 5.46563648989713, 4.10415613798566, 3.75388329273006, 3.98584710606474, 2.82144437086184, 1.50629832290545, 2.18486780537149, 1.55751051364113, 0.0276964845286848, 1.50071871494719, 5.4254641199483, 0.543084919785049, 3.16092065452067, 5.19124427895539, 6.19464201355272, 1.95365834413386, 1.75825901233488, 1.52372125275916, 1.30632888111883, 0.592208207194502, 2.48457594188947, 4.31585345061938, 3.2081127490451, 0.491798377205358, 2.10165361682883, 5.06620154208669, 0.663659415378715, 3.8895585724636, 3.91314585258669, 1.06943034646083, 3.70329020667088, 2.88997331413771, 1.25949333727748, 1.10349295627909, 5.48850298910456, 1.47392385975173, 1.53744771382702, 3.27633450940558, 6.02390363373308, 6.04815804577962, 2.26952313373199, 2.90608819205143, 3.86241193458018, 5.67412084741953, 3.26452859880416, 6.15350006888704, 5.48688255166703, 6.20791616467307, 3.68384365075044, 0.171424413263971, 1.22289990351848, 0.753079742018805, 5.13935788342828, 2.45542670127482, 0.745611903805254, 2.90938404806413, 2.74702586427139, 2.9514284893538, 2.27968831808027, 4.21823280781812, 4.30722391611882, 4.35748350312151, 5.65527822664119, 2.58867423785994, 3.13349236913869, 4.92601382435363, 1.3803664201544, 3.98074646585331, 0.241589583703272, 2.89416586974954, 4.78777809195007, 4.83810271328066, 1.79223368965479, 0.511613556058242, 4.3573339243357, 5.28646241936886, 0.527295585374115, 1.18807009034664, 5.83711134904222, 1.36989616319516, 2.87273782201903, 0.915014496611803, 2.32383561388706, 1.07966269956572, 4.01434607511189, 0.78462043869988, 5.46885293945382, 2.0118951346537, 5.55594286546511, 5.12698629884893, 1.19399119318522, 4.6409638519865, 0.372762827035868, 1.45477015543137, 6.1665437109926, 1.28558438743651, 3.84557068529067, 1.52635330490985, 3.07239368846469, 6.11836229228667, 5.51099187302794, 3.93918610415792, 3.56348178691564, 4.49677867159495, 3.85603721315972, 5.27373647197434, 4.48989903834052, 3.95919733894795, 3.6631658843697, 3.91174484376691, 2.23336435474006, 4.66503636345594, 5.69533325146029, 4.18078449624687, 1.17748434276607, 4.51542532015402, 1.38092818189996, 3.95863852463007, 4.86465650655373, 0.600031048441578, 5.64903433508069, 1.49945938128569, 1.13458378165887, 0.318720239109591, 0.937741030581609, 5.12272810621474, 2.69642747561964, 4.01835946823438, 0.821530057207844, 1.95574045975733, 0.952019577721132, 0.128785533480376, 1.93701079091507, 0.622326941415605, 3.81490338273784, 5.83318150760357, 4.80788354300373, 0.883680527329103, 2.03227696333366, 4.97480147885834, 2.53652203973757, 1.74609782105209, 5.31644410247321, 0.903501240888298, 1.40581408618352, 3.21798275606962, 3.4557590373251, 2.95845594631303, 1.24035058000518, 3.87818094178941, 4.06566783092223, 0.343587710646396, 1.64113506597964, 0.678143008925494, 3.10340916394715, 2.5234856281277, 4.076998724402, 0.227939389240854, 3.75293327615498, 0.745681375843156, 1.79773893567552, 4.64801929729362, 1.94577117034086, 2.5558571758186, 2.39320922469584, 4.93891730713478, 2.32486289997962, 1.63037333578965, 3.31520453696742, 5.30841845365601, 0.372030516182691, 2.78085103499691, 2.40916313762562, 2.76513836870851, 1.59553887068255, 3.92070775491521, 5.05790011995272, 2.35287611790499, 2.96528228895961, 4.32666169122151, 5.9072978350119, 3.83027765097782, 3.2164940873178, 5.70351195300256, 0.93247661803657, 5.15238639384105, 0.663953990503612, 5.66157231365886, 3.26171462649326, 1.45713601377082, 3.2983967872763, 1.95136053171296, 3.23351222754238, 4.78975722517733, 4.78186452379316, 3.695640374107, 4.8271958451668, 3.46123341534021, 5.57630440902539, 4.26989964224631, 0.350949155615401, 4.85043816877712, 1.43186037992258, 2.9749726389762, 5.84270909645015, 1.05597071241368, 5.45235967630183, 3.84902337434668, 2.17245168749446, 3.04717565556487, 5.84461210176993, 5.36426807769498, 6.09912805998087, 4.96680757207252, 4.05948061120776, 2.07519546021824, 2.84033536028553, 0.168823611299175, 1.70977104893379, 5.92098890272642, 3.26949882414043, 5.23428948002588, 1.69190192004778, 6.19346211529975, 4.49696023320816, 6.19446684610556, 3.7893701417916, 3.49909055641389, 5.40819799265068, 1.8846391290683, 1.21393910596394, 1.21552400584744, 3.6349745442456, 2.4634378399828, 1.95306022103064, 0.676993988570905, 3.93214167937047, 1.54946198744965, 4.36385094219077, 4.20260744900989, 0.82460022269939, 1.96563404453465, 5.47075647306217, 3.49105040587683, 3.32335522684759, 3.33345535109043, 5.84242928774451, 4.31021463398591, 0.830616800713155, 1.87429063250033, 4.63676047700973, 2.98274202524661, 5.32117631336934, 1.87580316931015, 4.14713947391929, 2.90022394794143, 6.02877873150384, 0.877728151162343, 0.766619044785883, 2.5228198449887, 1.18336686064368, 5.32978254102456, 0.480816221958569, 5.26714356331552, 4.43017298701401, 2.97367368861929, 0.741214166998673, 4.01559877502578, 0.305708772610524, 5.35578150769504, 5.67224213603809, 4.72340182475188, 5.10106676375622, 4.93432516183874, 3.54912615605738, 2.467008898568, 0.383693716213354, 4.1778110374832, 5.93580811375246, 2.22148314590711, 0.695143195391176, 2.56660094585538, 3.86451460546857, 4.75595722432728, 1.85086408782989, 2.85188077385315, 1.13650012641987, 1.85183397114663, 0.760046058469871, 4.66854906429729, 4.59375721951795, 5.97713848300698, 4.86285468485826, 2.71991476947419, 2.30715292875096, 0.877103345327341, 2.53242534640893, 4.61919504110127, 1.59021218025985, 2.01634243854563, 6.03532149675354, 3.52272992491007, 6.20511867529189, 2.94036438670711, 4.28094051000119, 6.08817754236178, 4.28050227060493, 3.94257340390048, 2.27807075458384, 0.37966828266774, 1.07007046003566, 3.6314960185085, 3.85761184272218, 0.290280604702401, 5.77985344386501, 5.83270710164554, 1.0174845770154, 2.89615963673962, 1.58107936514707, 5.91740372236149, 0.970114871729027, 1.42482016242241, 6.16857082735071, 2.76323109090468, 1.50286652193992, 2.10460490221135, 5.24362452608994, 3.67674993950874, 4.684245743071, 5.06986407882866, 4.19961987159562, 4.06181456709559, 3.71015031090074, 0.568004519325911, 5.02362397605336, 4.06902374222269, 4.00670250402605, 3.99406586291155, 3.02690407702263, 0.24204898447192, 3.67884707982449, 4.17390245121511, 1.0501552383401, 5.48554177000912, 3.2534035574453, 0.607437218823521, 2.32387054099722, 4.68929088864066, 5.63270291232151, 1.06305238835461, 1.40510154106626, 1.33926684832572, 2.9193216111759, 1.36233590748847, 5.47739489161281, 3.65710105949873, 0.276645059413112, 0.176706690397123, 1.32381779895136, 3.13413908979964, 0.967610140820129, 3.19004724297362, 3.73572342516266, 0.698842921725046, 4.87416618466692, 5.15402319845046, 4.17140260230116, 5.00153849029061, 0.497819145365931, 4.20328951404635, 0.702392839987015, 3.829295278135, 4.73868633902796, 2.99753719488559, 4.05278142217793, 4.67147517252104, 5.06141329630149, 5.54698117956277, 4.11173633921752, 0.165202227483394, 3.91069891339029, 0.383561820290968, 1.55022261592284, 3.25518382541973, 3.84110621092413, 4.56659839277621, 1.08653834341982, 3.04694149757914, 4.48987968990351, 5.11734368389185, 5.66475271719934, 4.17889337704655, 2.85817235346097, 2.6159630514743, 3.03108419307564, 5.54107102563832, 3.53607034711238, 6.26809787788282, 2.31698401678689, 3.74576011697637, 0.864108209209264, 1.5802118303633, 3.6517313682625, 3.36357147943932, 4.58533773954467, 3.19103194878316, 4.03384706710371, 4.76106093475281, 4.81901276141423, 1.23977284481888, 4.12784986364102, 3.56797141334475, 0.896458792049424, 3.70970605097961, 3.54969636829351, 3.2062230604813, 2.77985955675029, 1.22432857910086, 4.93259138319717, 2.46775799862233, 3.0081898503984, 4.46876212802286, 4.57781331054168, 0.552753637975135, 0.324650573480147, 0.728226014527112, 3.93153251949303, 1.21838451558546, 5.20699823430224, 6.24801251078914, 0.239056878808596, 1.02192634247736, 1.85186911144518, 5.62985543179424, 0.816738462684404, 0.8208128687534, 4.79467712783871, 1.22335103227416, 6.15681766244913, 2.18445569446985, 4.02130822642411, 2.57709436969584, 5.71567719459435, 5.55723921768227, 4.36715762912422, 0.00707276489959519, 3.40550301804636, 4.02396304780405, 0.146235683957278, 2.89089615037712, 5.14749594931166, 0.416423364443049, 1.6892383377323, 5.45251947827975, 3.68341682083734, 5.65190756066476, 3.6106115015918, 1.62664317760994, 0.679671124258451, 1.25048140461135, 0.325155400571825, 3.29802486918288, 4.76912826669582, 2.8726142700713, 4.60731046578359, 4.43142878290656, 0.16599519498687, 4.97133206466733, 0.873701166879113, 0.826052507566032)
#> z = 1.2207, n = 500, p-value = 0.2952
#> alternative hypothesis: the distribution is unimodal and non-uniform

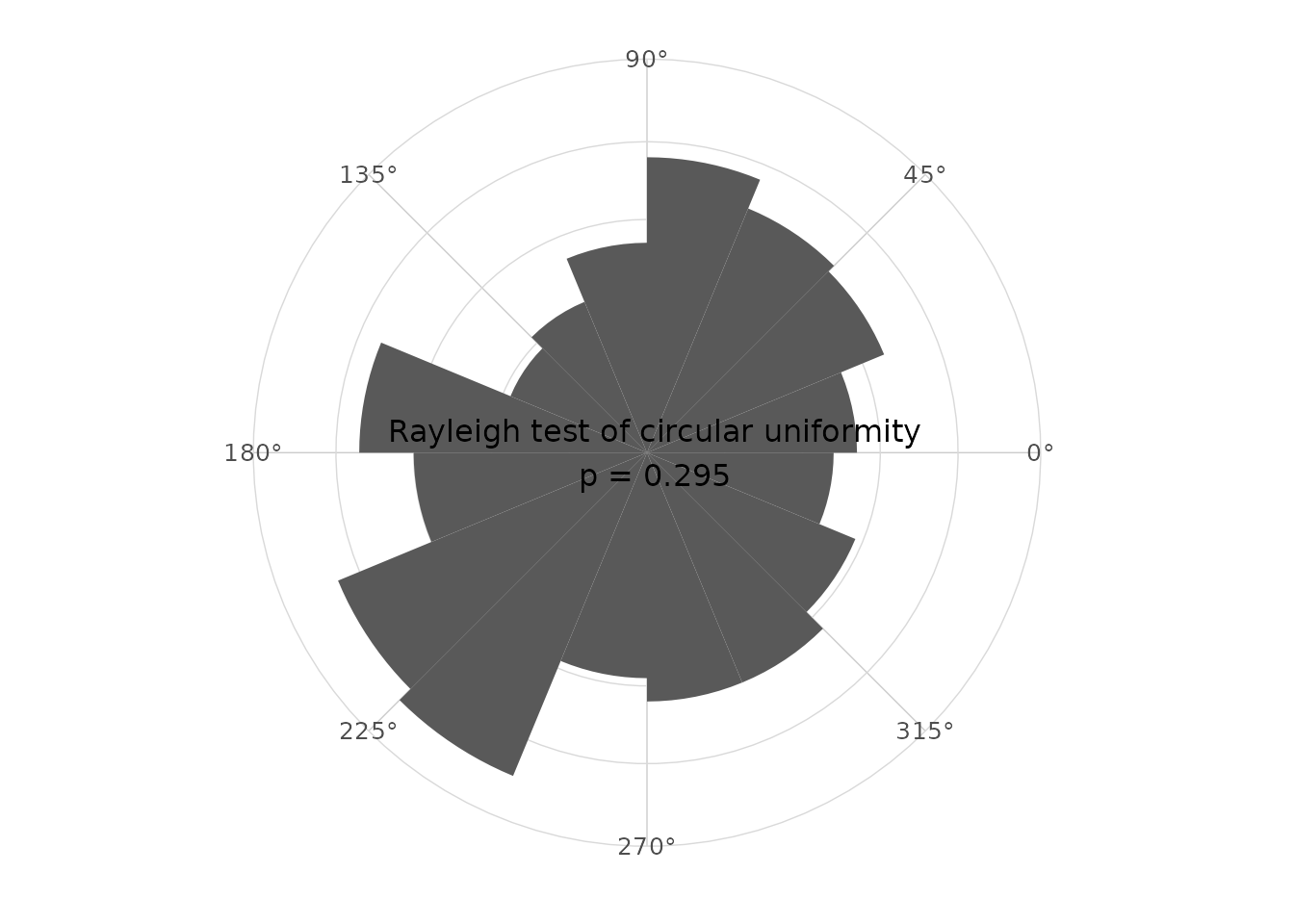

ggplot(wind_directions, aes(x = direction)) +
geom_rose(bins = 16) +
stat_circular_test(test = "rayleigh") +
scale_x_circular_degrees() +
coord_circular() +
theme_circular()
